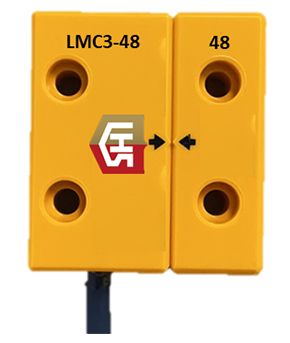

| ? Compact non-contact magnetic coded switch, easy to install in narrow frame structure. ?12mm wide, can sense the tolerance of height deviation. ?Meet the requirements of Class 3 standards. ?When combined with dual-channel safety relay, coded contactless switch can be used to provide protection up to Class 4 and PLe to ISO13849. |
| Ordering information |  |
Switch model | Contact configuration | Catheter opening/connector | type |
LMC3-48 | 2NC | 3M direct outlet | Coding universal type |
LMC4-48 | 2NC | 3M direct outlet | Coded unique type |
Description: | Configuring LHS security module can construct security system above PLd. | ||
| technical parameter |
security level/phase | |
Safety grade standard | ISO 13849-1， IEC/EN 60947-5-3 |
Safety classification | Class 3 switches conforming to ISO 13849-1; Dual-channel interlock is suitable for Class 3 or Class 4 systems. |
output | |
Safe output | 2個N.C.REEDS |
Outlet mode | Direct outlet |
technical parameter | |
working distance | Turn on. min: 8 mm; Disconnect. max: 17 mm |
Typical tolerance | See alignment schematic. |
Output current (maximum) | 200mA |
Response time | 5ms |
the protection grades | IP67(IP69K can be customized) |
Operating frequency | lHz |
Working temperature | -10~+55℃ |
relative humidity | 5%~95% |
material | UL certified thermoplastics |

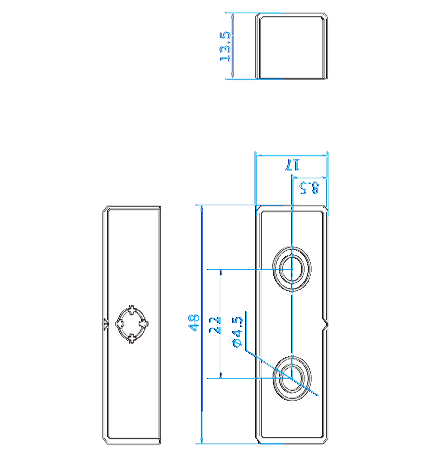

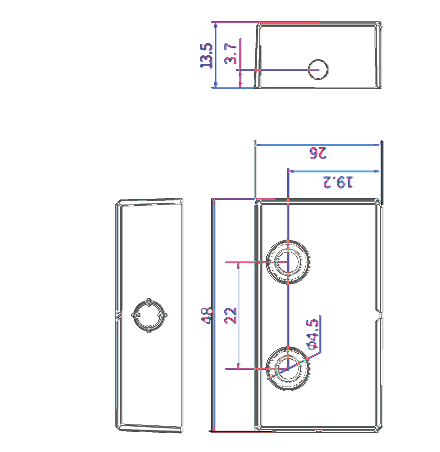

| Shape and installation dimensions |
Horizontal alignment | The deviation is within ±2mm in the X direction. |  |
The deviation is between-4 mm and-2 mm and between 2 mm and 4 mm in the X direction. | ||
Z-direction induction distance > ＞17m | ||
Vertical alignment | The deviation is within ±2mm in the X direction. | |
Y direction induction distance 0~8m | ||
Y direction induction distance > ＞17mm |

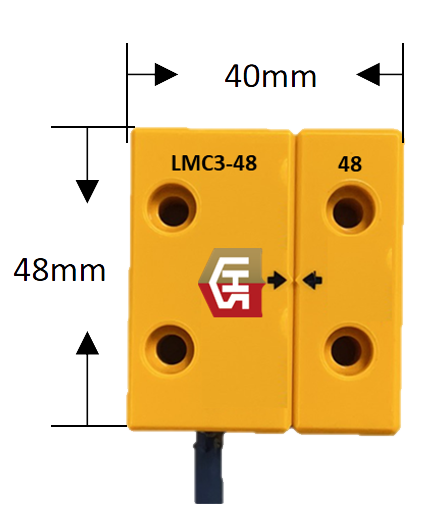

| Shape and installation dimensions |
 |  |  |
| Head installation direction |
 | serial number | Signal definition | colour |
| 1 | Output A1 | black | |
| 2 | Output A2 | white | |
| 3 | Output B1 | ash | |
| 4 | Output B2 | green | |
Note: A1/A2 is a set of switch outputs. B1/B2 is a set of switch outputs. For constructing safety loop level, please use safety controller. | |||

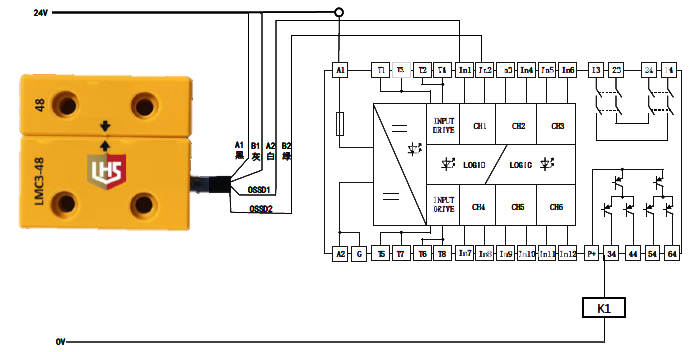

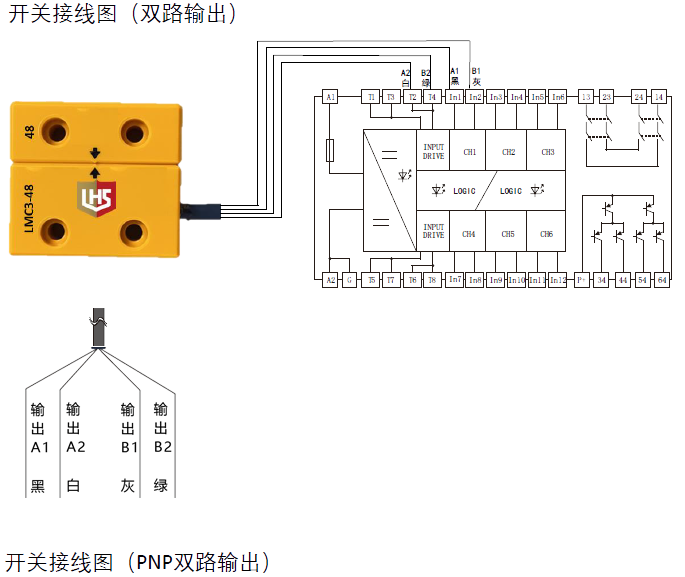

| PLD safety circuit wiring case |
|
